Introducing
Prana Air

Ambient

Air Quality Monitor

Your first step towards healthy outdoors


Request A Quote

Our Products

prana air lite ambient air quality monitor

Ambient Monitor Lite

prana air smart ambient air monitor
                            style=

Ambient Monitor Smart

prana air pro ambient air monitor

Ambient Monitor Pro

Outdoor Monitor Pro

Ambient Monitor Lite

Ambient Monitor Smart

ambient air quality monitor

Ambient Monitor Smart

prana air smart ambient air monitor

Outdoor Monitor Pro

prana air lite ambient air quality monitor

Ambient Monitor Lite


CAAQMS Continuous
Ambient Air Quality Monitor

Product Main Features:

real-time air monitoring icon

Real-Time Monitoring

monitor high on power icon

High-On Power

monitor low cost maintenance icon

Low Maintenance Cost

monitor compact design

Compact Design

monitor compact design

Easy Data-Accessible Dashboard

waterproof monitor

Weatherproof Monitor

modes of monitor connectivity icon

Modes of Connectivity
(GSM, Wifi, NB-loT, RS-485)

Ambient Air Quality Monitoring Device

Ambient Air Monitoring is one of the primary aspects that govern environmental stability. Air quality is dynamic. Several factors control the air quality of a place. There are numerous natural, industrial, and anthropogenic sources that emit air toxins. Meteorological factors also alter and impact air quality. Outdoor air pollution does not just jeopardize the living. It is also detrimental to the ecology and the atmospheric chemistry of the earth. Thus, outdoor air monitoring is essential.

Outdoor air quality monitoring is an integral part of environmental assessments. Proper air monitoring helps in the formulation of an efficient action plan to mitigate air pollution. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up. However, not only does our device exemplify efficiency, but it is also compact and cost-efficient.

The primary aspect for determining environmental stability is the Continuous Ambient Air Quality Monitoring System (CAAQMS). There are many factors that control the quality of air and many sources contributing to it such as natural, industrial and anthropogenic. Meteorological factors also alter and impact air quality. Outdoor air pollution does not just jeopardize the living. It is also detrimental to the ecology and the atmospheric chemistry of the earth. Chronic Obstructive Pulmonary Disease (COPD) and asthma are examples of bad air quality for human health. Thus, outdoor air monitoring is essential. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up as it involves regular filter changes, and importing regulations. Prana air gives ambient air quality monitors that are easy to use, portable, and highly cost-effective. The monitor comes with detecting sensors for particulate matter, nitrogen dioxide, sulfur dioxide, hydrogen sulfide, carbon monoxide, and ozone based on different sensing techniques.

Using Continuous Ambient Air Quality Management System helps you to assess pollution extent, create awareness among the general public, decisions, and policymaking, and provides you with data for air quality model evaluation and emission control strategies.

System Architecture

ambient air quality monitor connectivity process

aqi monitoring

Prana Air CAAQMS

Prana Air Ambient Air monitor is CAAQMS (Continuous Ambient Air Quality Monitoring System) installed with sensors to detect the concentration of pollutants. Commonly measured pollutants are PM10 and PM2.5, SO2. NO2, O3, H2S, and CO. Prana Air monitor is economical, easy to use, portable, compact, lightweight, and consumes very less time for analysis. The data is shown on a digital screen and provides 24×7 access to analytic results. The real-time data is given in less than 30 seconds with accuracy and precision. It does not demand any after-purchase expenses like filter change, calibrations, etc., and has Wi-Fi, GSM, and RS-485 type connectivity. The data is easily accessible from AQI website and mobile & TV app.

aqi monitoring

Traditional CAAQMS

Traditional CAAQMS (Continuous Ambient Air Quality Monitoring System) is very big in size comparable to a small room. The system has different analyzers for different parameters such as BAM for Particulate Matter, pulsed UV fluorescence for SO2, chemiluminescence for NO2 and NH3, NDIR (Non-Dispersive Infrared Technology) for CO2, and UV photometric/ chemiluminescence for O3 and gives real-time data within 20-25 minutes. The system is bulky & huge and hence its portability is restricted. It requires manpower, high maintenance cost, and time to time filter replacements. The data is easily accessible from government websites.

Features
Prana Air CAAQMS
Traditional CAAQMS
Pollutants

Detects PM 10, PM 2.5, SO2. NO2, O3, H2S and CO by a single monitor.

Detects all pollutants by different technology such as BAM, Improved West and Gaeke etc.

Monitor Size

Compact and lightweight

Huge and bulky

Real-time Data

In less than 30 seconds.

In 20-25 minutes.

Portability

Easy portability

Restricted portability

Device Cost

Low cost

High cost

Filter Change

Not required

Regular filter change

Manpower

Very less manpower

Intensive Manpower

Accuracy

Highly accurate & precise to traditional methods

Highly accurate results

Technology

Sensor based

Different technology based analyzers such as BAM/ Gravimetric etc.

Connectivity

Easy connectivity

Slightly complex connectivity

Data Accessibility

Customized accessibility to website, mobile & TV app

Centralized government websites

System Architecture

connectivity of prana air ambient air quality monitor

Prana Air’s Ambient Air Quality Monitoring device has three different power sources solar power source, USB source, and 5000 mAh battery. The device has an SD card type of storage with RS485, Wi-Fi, GSM, and NB-IoT connectivity types. The data is sent to cloud storage and the user can view stored data on the mobile, tablet, and TV app dashboards.

Meet your Project Needs

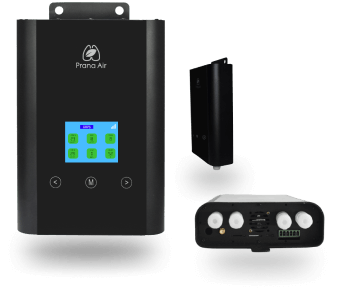

ambient air quality monitor structure

Power Source

5000 mAh Battery

AC 100-240V (50/60 Hz)

DC 10-30V

Connectivity

WiFi, GSM, RS-485

Mobile App Enabled

Designed to be discreet

Our Ambient Air Quality Monitoring device carves out its own niche in excellence. Its compact design and precise pollutant-sensing technology help you meet and exceed the expectations of environmental monitoring. It is an entire air monitoring station packed in a box of wonder.

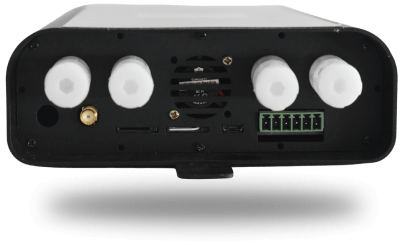

prana air ambient air quality monitor bottom view

Designed to be discreet

Our Ambient Air Quality Monitor carves out its own niche in excellence. Its compact design and precise pollutant-sensing technology helps you meet and exceed expectations of environmental monitoring. It is an entire air monitoring station packed in a box of wonder.

Technical Specifications

Parameters: PM10, PM2.5 & PM1, Temperature, Humidity, Pressure
Optional Parameters: CO2, TVOC, HCHO, CO, NO2, SO2, O3, H2S
Weight: 1.13 kg
Battery: 5000 mAh Lithium ion battery
Size: 14 x 4.5 x 19.5 cm
Display: 2.5 inch colour display
Housing: Weatherproof & Vehicle Mounted
Power Supply & Adapter: Input: 100-240V, Output: 12V
Storage: MicroSD for data transmission via micro USB unlimited cloud storage
Dashboard: Customised dashboard (www.aqi.in) mobile app: AQI India (Android/iOS)
Communication: GSM (Cellular 2G & 3G compatible), NB-IOT & WiFi GPS for Geo-time tagged Latitude - Longitude data.

Monitor Variants

Our Ambient Air Quality Monitoring device is where your search stops if you are looking to quantify the concentration and impact of air toxins at an outdoor location. Our exclusive instrument comes in three variants to cover all possible application aspects of outdoor air monitoring.

Variants Application Parameters Weather Station
Ambient Lite General Community PM 2.5, PM 10, Temperature, Humidity Optional Get a Quote
Ambient Smart Advanced Applications Ambient Lite + 10 PPB Resolution
(NO2, SO2, H2S, CO, O3)
Optional Get a Quote
Ambient Pro Research Grade Ambient Lite + 1 PPB Resolution
(NO, NO2, SO2, H2S, CO, O3)
Optional Get a Quote

Parts & Labels

prana air ambient air quality monitor technical features

Manage your Air with
the Dashboard

With Prana Air Outdoor Air Quality Monitor you can access dashboard to view your real time air quality readings and recieve notifications. You can also use the dashboard to manage multiple devices, review and compare readings and export your data to optimize your space.

With Prana Air Ambient Air Quality Monitor, you can access the dashboard to view your real time air quality readings and recieve notifications. You can also use the dashboard to manage multiple devices, review and compare readings and export your data to optimize your space.

aqi smart tv app

Download Our TV App

Install our app in your smart TV, and connect your monitors
to display air quality data on your television sets 24*7.

Download Our TV App

Install our app in your smart TV, and connect your monitors
to display air quality data on your television sets 24*7.

AQI Web Dashboard


Web Dashboard Features

real-time and historic data

Real-Time & Historic Data

Access the real-time or historic air pollution data of your monitor in minutes, hours, week, months & year.

multiple devices icon

Multiple Devices at One Place

Easy pairing with one/multiple Prana Air – Air Pollution Monitors through WiFi/GSM SIM connectivity.

graphical representation

Graphical Presentation of Data

Get graphical representation of air quality data for your monitor in different ways.

monitor data comparison analysis

Comparative Analysis of Monitors

You can compare the data of your different monitors and make inferences.

qr code and link generate

Generate Link/Scan QR Code

You can generate a link or scan QR code to share the live monitoring data with people and also compare with AQI outdoor monitors.

monitor data download

Export Data of Your Need

Download your monitor’s data anytime offline in .csv/xls for your analysis.

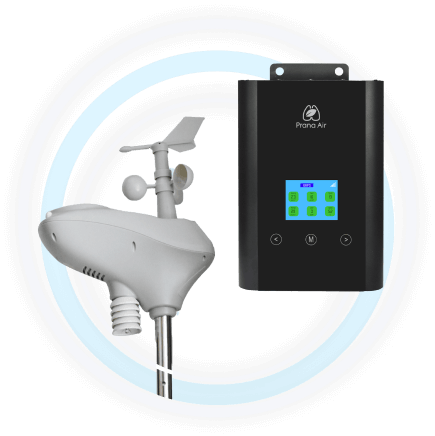

Continuous Ambient Air Quality & Weather Monitoring

prana air ambient air monitor with weahter station

Converge air quality data from multiple monitors in one space for comprehensive air quality, weather monitoring, and mapping of pollution sources.

Plug-in an additional weather station module for a wholesome assessment of ambient air.

Sensor Specifications

Temperature
Sensor Type: Digital Sensor Range: 0-60 ̊C (32 to 140 ̊F) Accuracy: ±0.5 ̊C (±1.0 ̊F) Resolution: 0.1 ̊C (0.1 ̊F)
Carbon Dioxide
Sensor Type: NDIR Range: 1-5000 PPM Accuracy: ±3.0% Resolution: 1 PPM
Relative Humidity
Sensor Type: Digital Sensor Range: 5% to 95% RH Accuracy: ±3.0% RH Resolution: 1% RH
TVOC’s
Sensor Type: MOS Range: 0.01-20 PPM Accuracy: ±10% Resolution: 0.01 PPM
Particulate Matter
Sensor Type: 90˚ Light Scattering Range: 1 - 2000 µg/m3 Accuracy: 1 -150 µg/ is ± 10%
150 µg/m3 onwards is ±15%
Resolution: 1µg/m3
Formaldehyde (HCHO)
Sensor Type: Electrochemical Range: 0.01 - 2 PPM Accuracy: ±10% Resolution: 0.01 PPM
ambient air quality monitoring device
NO2 (Nitrogen Dioxide)
Sensor Type: Electrochemical Range: 0.01 PPM - 5 PPM Accuracy: ±3.0% Resolution: 10 PPB
O3 (Ozone)
Sensor Type: Electrochemical Range: 0.02 - 5 PPM Accuracy: ±3.0% Resolution: 10 PPB
Carbon Monoxide (CO)
Sensor Type: Electrochemical Range: 0.1 - 1000 PPM Accuracy: ±3.0%, ±50 PPM Resolution: 0.1 PPM
H2S (Hydrogen Sulphide)
Sensor Type: Electrochemical Range: 1 -10 PPM Accuracy: ±3.0% Resolution: 10 PPB
SO2 (Sulfur Dioxide)
Sensor Type: Electrochemical Range: 0.01 - 50 PPM Accuracy: ±3.0% Resolution: 10 PPB
.
Ethanol
Sensor Type: Electrochemical Range: 0.3 - 800 PPM Accuracy: ±3.0% Resolution: 0.01 PPM

AIR QUALITY STANDARDS BY DIFFERENT BODIES

ParametersWHOCPCBUS EPAEU EEA
PM1024hr: 50 μg/m3
24hr: 50 μg/m3
24hr: 100 ug/m3
Annual: 60 ug/m3
24hr: 150 μg/m3Hourly: 50 ug/m3
Annual: 40 ug/m3
PM2.524hr: 25 μg/m3
Annual: 10 μg/m3
24 hrs: 60 ug/m3
Annual: 40 ug/m3
24 hrs: 35 μg/m3
Annual: 12.0 μg/m3
Annual: 25 ug/m3
NO21hr: 200 μg/m3
Annual: 40 μg/m3
24hr: 80 ug/m3
Annual: 50 ug/m3
1hr: 100 ppb
Annual: 53 ppb
Hourly: 200 ug/m3
Annual: 40 ug/m3
SO210m: 500 μg/m3
24-hr: 20 μg/m3
24hrs:80 ug/m3
Annual: 50 ug/m3
3hr: 0.5 ppm
1hr: 75 ppb
O31hr: 180 ug/m3
8hr mean: 100 μg/m3
8hr: 100 ug/m38hr: 0.070 ppm8hr: 120 ug/m3
CO8 hrs: 02 mg/m3
1 hr: 04 mg/m3
8 hrs: 9 ppm
1 hr: 35 ppm

Comparison Graph

prana air monitor vs bam data comparison chart

Product Applications

Smart City

Air quality monitoring systems are being installed in smart cities to monitor the ambient air quality level like PM2.5, PM10, CO, NO2, SO2, etc.

Airports

An ambient air quality monitoring device can be deployed near the runways and the premises of airports to find out the contributing air pollutants .

Metro Station

Nowadays, air quality monitors are installed on the platforms of metro stations as they are one of the most crowded places where everyday people go.

Bus Station

As bus stations are also the most congested areas, air pollution monitoring devices are placed to measure the polluted air.

air quality monitoring in college
Unversity & Schools

Air quality monitoring systems can be installed on university and school premises to continuously monitor the quality of air people are breathing. The good air quality at educational institutions will reduce the chances of Sick Building Syndrome with enhanced productivity.

Highways

Highways can be installed with air quality monitoring system to keep continuous of track air pollution caused by vehicular emissions on highways. This will also help to determine the impact of highway air pollution on nearby villages.

Waste management Plants

Installation of air quality monitoring nearby waste management plant must be a compulsion. The waste management plants release harmful pollutants in air and monitoring system will help in keeping the continuous track of AQI.

Tunnels

Air quality monitoring is necessary for tunnels as it’s a closed route for vehicles and the pollutants from emissions are not able to wash out completely. Bad AQI in the tunnel is a result of poor ventilation.

Frequently Asked Questions

About Prana Air Ambient Air Quality Monitor

CAAQMS is Continuous Ambient Air Quality Monitoring System that monitors outdoor air quality parameters. The parameters are Particulate Matter 10 and 2.5, SO2. NO2, O3, H2S and CO.

CAAQMS is necessary as it monitors pollutants using different analyzers based on different working principle. This helps in reducing manual error chances. CAAQMS can generate data with high accuracy in a few minutes and the data is disseminated to general public through its display screen.

Ambient Air Quality Monitoring System is needed at places where the air is polluted majorly through vehicular and industrial emissions such as at airports, bus stations, railway stations, mining industries, universities, schools etc.

This monitor is user-friendly, cost-effective, and easily portable. The monitor is light weighted compactly designed with the installation of a 5000 mAh battery.

Prana Air ambient air quality monitor is applicable only outdoor as the name itself is ambient.

Prana Air ambient air quality monitoring system has 3 product variants – Ambient Lite, Smart & Pro.

Any user can access the data from the monitor through various ways like WiFi, GSM SIM, RS485 in AQI mobile applications of android & iOS, smart TV & web dashboard.

Yes, not only mobile applications, but smart TV application is also available.

We have different data plans in terms of license on the basis of monthly, quarterly, or annually at a fixed cost.

In free plan, you can only access the real-time data and all the other features of dashboard will be restricted.

Yes, we give a 1-year warranty for the ambient air quality monitor only on manufacturing defects.

Yes, Device Calibration: Usually, the sensors last 3 years without calibration. In case, if you experience a huge drift on the device calculation, the sensor has to be calibrated or changed. In this case, the monitor has to be returned to our premises and the replacement of sensors will be done free of cost if it is under warranty. For out of warranty, the replacement will be done on additional cost.

You can directly contact our support team.

Call at 07391873918 or email – [email protected]
