CO – Carbon
Monoxide Sensor
1000 PPM Pinned

Buy NowDownload Datasheet

carbon moxide sensor

Carbon Monoxide (CO) Sensor:

Prana Air CO sensor has been created with finesse and precision for consumer and industrial grade safety monitoring. The sensor comes packed with the cutting edge technology of electrochemical detection of the highly-toxic CO gas. The ultra-thin, compact, and cost-effective package allows easy-inclusion into all kinds of CO monitoring and regulatory solutions. Our sensors, with their precision, have the potential to revolutionize the scenario of environmental and health based monitoring of air toxins. These robust sensors, due to high operational life, find diversified applications in residential, industrial, and commercial instruments.



The sensor’s ultra-thin package and small size enables it to get lodged in any kind of device or instrument. It is suitable for hand-held devices as well as real-time outdoor monitoring.


The highly accurate sensor comes with a long-lasting operational life of up to 10 years. Install it in your instrument once and forget all your sensor related worries.

Highly Responsive

The average response time of this CO sensor is 15 seconds making it robust and swift. Hence, it is the apt choice for real-time monitoring.

Energy Efficient

It requires low power input (0 mW at 0 mV bias) to function. Therefore, the overall energy consumption of the device decreases due to this energy-saving sensor.

Individual Calibrated

Individual calibration service procures readings with the highest accuracy for every device the sensor is put in.

RoHS Compliant

Our CO sensor is synchronous to the Restriction of Hazardous Substances Directive (RoHS) for electrical and electronic equipment.

Technology We Use

What technology is being used in the device

Prana Air CO sensors work on the principle of the electrochemical gas sensing technique. These sensors are amperometric fuel cells designed to quantify the concentration of a gaseous toxin.

There are three principal components in this type of sensor- a working (sensing) electrode, a counter electrode, and an ion conductor that acts as a bridge between the electrodes. The toxic gas, CO is detected on the working electrode and gets oxidized with water molecules. This oxidation results in the formation of electrons and protons as by-products.

A short circuit between the two electrodes makes the protons generated in the above reaction flow from the working electrode to the counter electrode via the conductor. On the other hand, the electrons also reach the counter electrode through the electric pathway.

The directional flow of electrons through the wire creates an electric current that is directly proportional to the concentration of gas. The gas sensor works by measuring this current flow between the two sensors.


prana air co sensor

Where is it applicable?

application of prana air co sensor

Sensor Dimension

Prana Air CO Sensor Dimension

Technical Specification

prana air co sensor

Technical Indicators of Sensors

Measurement Range0 to 1,000 ppm
Detection Limit0.5 ppm
Resolution< 100 ppb (instrumentation dependent)
Repeatability<± 2 % of reading
Response Time – T(90)< 30 seconds (15 seconds typical)
Sensitivity4.75 ± 2.75 nA/ppm
OverloadPasses EN50291-1 Sec. 5.3.6 5,000 ppm overload
Expected Operating Life> 5 years (10 years @ 23 ± 3 °C; 40 ± 10% RH)
Operating Temperature Range-30 to 55 °C (-20 to 40 °C continuous recommended)
Operating Humidity Range – non-condensing15 to 95% recommended continuous 0 to >95% RH – intermittent
Operating Bias0 to 5 mV
Power Consumption10 to 50 uW (circuit & ambient CO dependent)

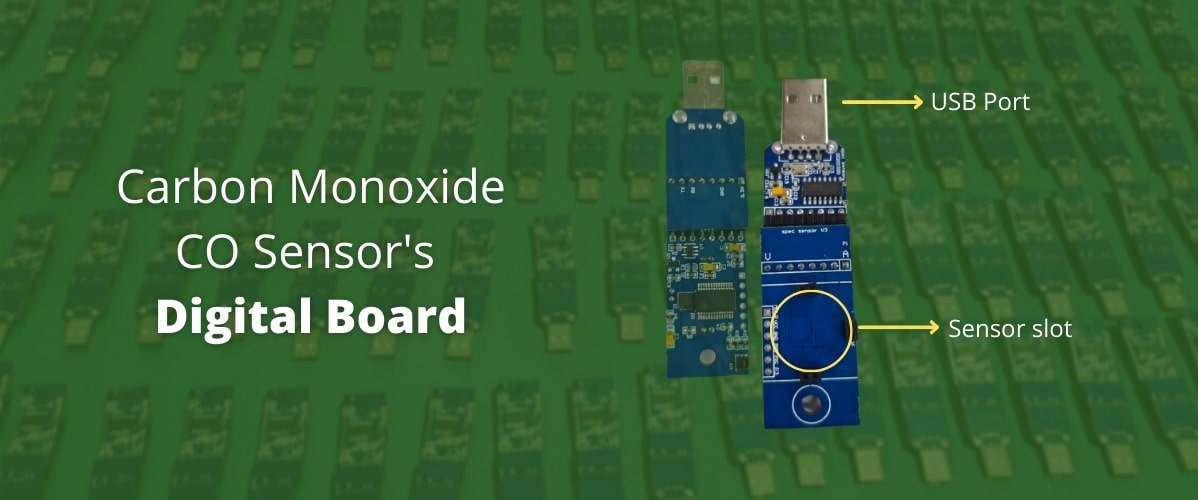

prana air co sensor board


use of co sensor in ambient air quality monitoring station

Continuous Ambient Air Quality
Monitoring Station

use of co sensor in indoor air quality monitors

Indoor Air Quality

use of co sensor industrial air monitoring

Industrial CO

use of co sensor in automobile equipments

Automobile & Aeronautical

use of co sensor in residential & commercial monitoring

Residential & Commercial
CO Monitoring

use of co sensor in drones for air monitoring

Air Quality Monitoring

Avail 5% Discount For Students/Research Studies

Contact us for more details about Carbon Monoxide CO sensor.
