Nitrogen Dioxide
NO2 Sensor
5F PPM Pinned

Buy NowDownload Datasheet

nitrogen dioxide sensor

Nitrogen Dioxide (NO2) Sensor:

Prana Air NO2 sensors have been created with panache and precision for consumer and industrial grade safety monitoring. The sensor comes packed with the cutting edge technology of electrochemical detection of the highly-toxic NO2 gas. The ultra-thin, compact, and cost-effective package allows easy-inclusion into all kinds of NO2 monitoring and regulatory solutions. Our sensors, with their precision, have the potential to revolutionize the scenario of environmental and health based monitoring of air toxins. These robust sensors, due to high operational life, find diversified applications in residential, industrial, and commercial instruments.



The sensor’s ultra-thin package and small size enables it to get lodged in any kind of device or instrument. It is suitable for hand-held devices as well as real-time outdoor monitoring.


The highly accurate NO2 sensor comes with a long-lasting operational life of up to 10 years. Install it in your instrument once and forget all your sensor related worries.

Highly Responsive

The average response time of this NO2 sensor is 15 seconds making it robust and swift. Hence, it is the apt choice for real-time monitoring.

Energy Efficient

It requires low power input (0 mW at 0 mV bias) to function. Therefore, the overall energy consumption of the device decreases due to this energy-saving sensor.

Individual Calibrated

Individual calibration service procures readings with the highest accuracy for every device the sensor is put in.

RoHS Compliant

Our NO2 sensor is synchronous to the Restriction of Hazardous Substances Directive (RoHS) for electrical and electronic equipment.

Technology We Use

What technology is being used in the device

Prana Air NO2 sensors work on the principle of the electrochemical gas sensing technique. These sensors are amperometric fuel cells designed to quantify the concentration of a gaseous toxin.

There are three principal components in this type of sensor- a working (sensing) electrode, a counter electrode, and an ion conductor that acts as a bridge between the electrodes. The toxic gas, NO2 is detected on the working electrode and gets oxidized with water molecules. This oxidation results in the formation of electrons and protons as by-products.

The directional flow of electrons through the wire creates an electric current that is directly proportional to the concentration of gas. The gas sensor works by measuring this current flow between the two sensors.

prana air nitrogen dioxide sensor

Where is it applicable?

prana air nitrogen dioxide sensor

NO2 Sensor Dimension

Prana Air NO2 Sensor Dimension

Technical Specification

prana air no2 sensor specfications

Technical Indicators of Sensors

Measurement Range0 to 5 ppm
Lower Detection Limit< 20 ppb (instrumentation dependent)
Resolution< 100 ppb (instrumentation dependent)
Repeatability< +/- 5 % of reading or 10ppb
Response Time< 15 seconds
Sensitivity-30 +/- 10 nA/ppm
OverloadPasses EN50291-1 Sec. 5.3.6 5,000 ppm overload
Expected Operating Life> 5 years (@ 23+/-3C; 40+/-10% RH)
Operating Temperature Range-40 to 50 C (-20 to 40 C recommended)
Operating Humidity Range – non-condensing0 to >95% RH (15 to 95% continuous)
Power Consumption10 to 50 uW (circuit & ambient NO2 dependent)

Code will be available on mail after the order is placed successfully.

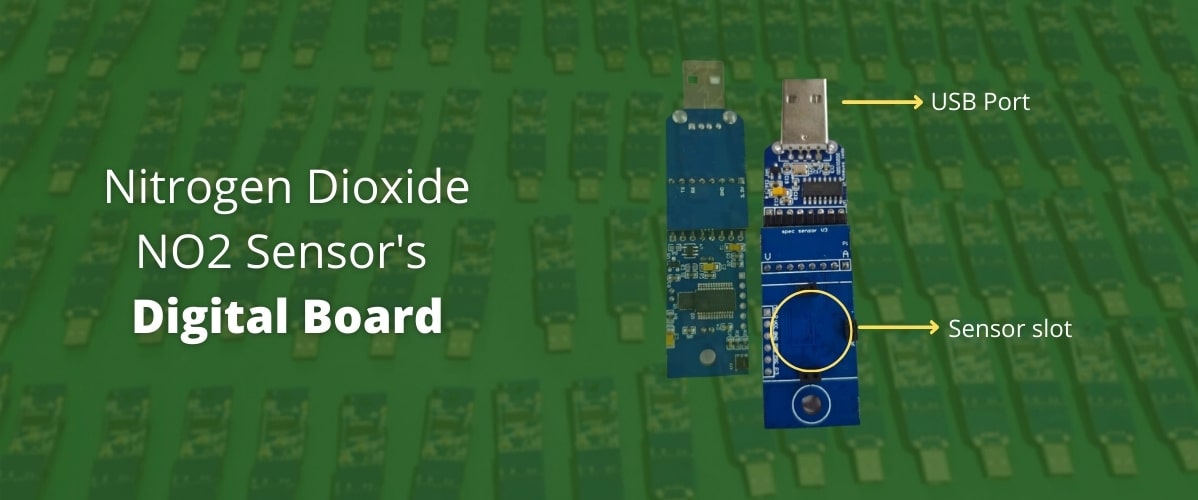

prana air nitrogen dioxide no2 sensor digital board


use of no2 sensor in ambient air quality monitoring

Continuous Ambient Air Quality
Monitoring Station

no2 sensor for Industrial Safety Equipment

Industrial Safety

use of no2 sensor in automobile equipments

Automobile Equipment

no2 sensor for Gas detectors

Gas Detectors for Commercial &
Food Manufacturing Units

no2 sensor for Oil Refineries

Regulatory Instruments at Power Plants
& Oil Refineries

no2 sensor for Retrofit devices for dg sets

Retrofitting Devices
For DG Sets

Avail 5% Discount For Students/Research Studies

Contact us for more details about Nitrogen Dioxide NO2 sensor.
