Introducing
Prana Air

Ambient

Air Quality Monitor

Your first step towards healthy outdoors

Our Products

prana air lite ambient air quality monitor

Ambient Monitor Lite

prana air smart ambient air monitor
                            style=

Ambient Monitor Smart

prana air pro ambient air monitor

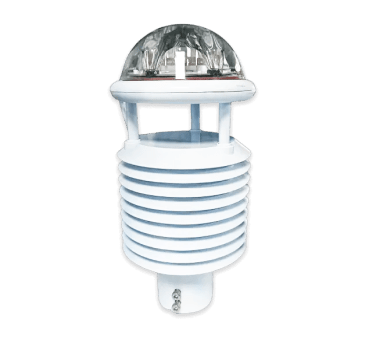

Ambient Monitor Pro

Outdoor Monitor Pro

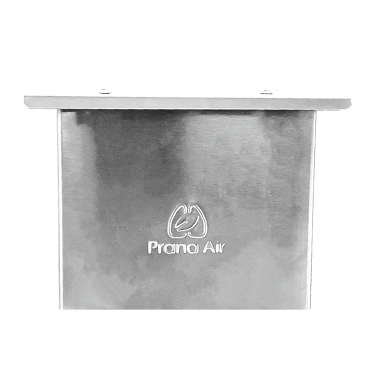

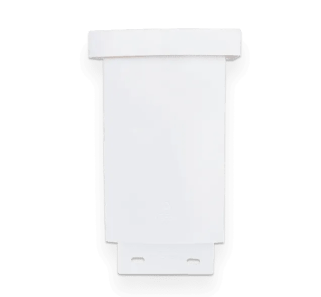

Ambient Monitor Lite

Ambient Monitor Smart

ambient air quality monitor

Ambient Monitor Smart

prana air smart ambient air monitor

Outdoor Monitor Pro

prana air lite ambient air quality monitor

Ambient Monitor Lite


Ambient Air Quality
Monitoring

Product Main Features:

real-time air monitoring icon

Real-Time Monitoring

monitor high on power icon

High-On Power

monitor low cost maintenance icon

Low Maintenance Cost

monitor compact design

Compact Design

monitor compact design

Easy Data-Accessible Dashboard

waterproof monitor

Weatherproof Monitor

modes of monitor connectivity icon

Modes of Connectivity
(GSM, Wifi, NB-loT, RS-485)

Ambient Air Quality Monitoring Device

Ambient Air Monitoring is one of the primary aspects that govern environmental stability. Air quality is dynamic. Several factors control the air quality of a place. There are numerous natural, industrial and anthropogenic sources that emit out air toxins. Meteorological factors also alter and impact air quality. Outdoor air pollution does not just jeopardise the living. It is also detrimental to the ecology and the atmospheric chemistry of the earth. Thus, outdoor air monitoring is essential.

Outdoor air quality monitoring is an integral part of environmental assessments. Proper air monitoring helps in the formulation of an efficient action plan to mitigate air pollution. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up. However, not only does our device exemplify efficiency, it is also compact and cost-efficient.

The primary aspect for determining environmental stability is Continuous Ambient Air Quality Monitoring System (CAAQMS). There are many factors that control the quality of air and many sources contributing towards it such as natural, industrial and anthropogenic. Meteorological factors also alter and impact air quality. Outdoor air pollution does not just jeopardize the living. It is also detrimental to the ecology and the atmospheric chemistry of the earth. Chronic Obstructive Pulmonary Disease (COPD) and asthma are examples of bad air quality on human health. Thus, outdoor air monitoring is essential. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up as it involves regular filter change, importing regulations. Prana air gives ambient air quality monitors that are easy to use, portable, and are highly cost effective. The monitor comes with detecting sensors for particulate matter, nitrogen dioxide, sulfur dioxide, hydrogen sulfide, carbon monoxide and ozone based on different sensing technique.

Using Continuous Ambient Air Quality Management System helps you to assess pollution extent, creating awareness among general public, decision and policy making, provides you with data for air quality model evaluation and emission control strategies.

System Architecture

ambient air quality monitor connectivity process

aqi monitoring

AAQMS – Monitoring

Ambient Air Quality Monitoring System works manually. The samples are collected from device for few days and are transferred to laboratory centers manually for analysis. The process of report generation is manually on analytic basis and is further archived to server. Analysis of filter is done before and after sampling for different pollutants and data is recorded. This process is time consuming and labor intensive.

aqi monitoring

CAAQMS – Monitoring

Continuously Ambient Air Quality Monitoring System works digitally. The monitors are installed with sensors to detect the presence of pollutants. Commonly measured parameters are PM 10 and PM 2.5, SO2. NO2, O3, H2S and CO. CAAQMS consists of Gas Analyzers, Particulate Monitors, Meteorological sensors, calibration systems, data acquisition systems, reporting and software. CAAQMS is cost effective, easy to use, portable and consumes very less time for analysis. The data is shown on a digital screen and provides 24×7 access to analytic results.

System Architecture

connectivity of prana air ambient air quality monitor

Prana Air’s Ambient Air Quality Monitoring device has three different power sources solar power source, USB source and 5000 mAh battery. The device has SD card type of storage with RS485, Wi-Fi, GSM and NB-IoT connectivity types. The data is sent to cloud storage and user can view stored data on mobile, tablet and TV app dashboard.

Meet your Project Needs

ambient air quality monitor structure

Power Source

5000 mAh Battery

AC 100-240V (50/60 Hz)

DC 10-30V

Connectivity

WiFi, GSM, RS-485

Mobile App Enabled

Designed to be discreet

Our Ambient Air Quality Monitoring device carves out its own niche in excellence. Its compact design and precise pollutant-sensing technology helps you meet and exceed expectations of environmental monitoring. It is an entire air monitoring station packed in a box of wonder.

prana air ambient air quality monitor bottom view

Designed to be discreet

Our Ambient Air Quality Monitor carves out its own niche in excellence. Its compact design and precise pollutant-sensing technology helps you meet and exceed expectations of environmental monitoring. It is an entire air monitoring station packed in a box of wonder.

Technical Specifications

Parameters: Temperature, Humidity, Pressure, PM 10, PM 2.5 & PM1
Optional Parameters: Latitude-Longitude, CO2, TVOC, HCHO, CO, NO2, SO2, O3, H2S
Weight: 1.13 kg
Battery: 5000 mAh Lithium ion battery
Size: 14 x 4.5 x 19.5 cm
Display: 2.5 inch colour display
Housing: Weatherproof & Vehicle Mounted
Power Supply & Adapter: Input: 100-240V, Output: 12V
Storage: MicroSD for data transmission via micro USB unlimited cloud storage
Dashboard: Customised dashboard (www.aqi.in) mobile app: AQI India (Android/iOS)
Communication: GSM (Cellular 2G & 3G compatible), NB-IOT & WiFi GPS for Geo-time tagged Latitude - Longitude data.

Monitor Variants

Our Ambient Air Quality Monitoring device is where your search stops if you are looking to quantify the concentration and impact of air toxins at an outdoor location. Our exclusive instrument comes in three variants to cover all possible application aspects of outdoor air monitoring.

Product Variants Product Application Product Parameters Weather Station
Ambient Lite General Community PM 2.5, PM 10, Temperature, Humidity Optional
Ambient Smart Advanced Applications Ambient Lite + 10 PPB Resolution
(NO2, SO2, H2S, CO, O3)
Optional
Ambient Pro Research Grade Ambient Lite + 1 PPB Resolution
(NO, NO2, SO2, H2S, CO, O3)
Optional

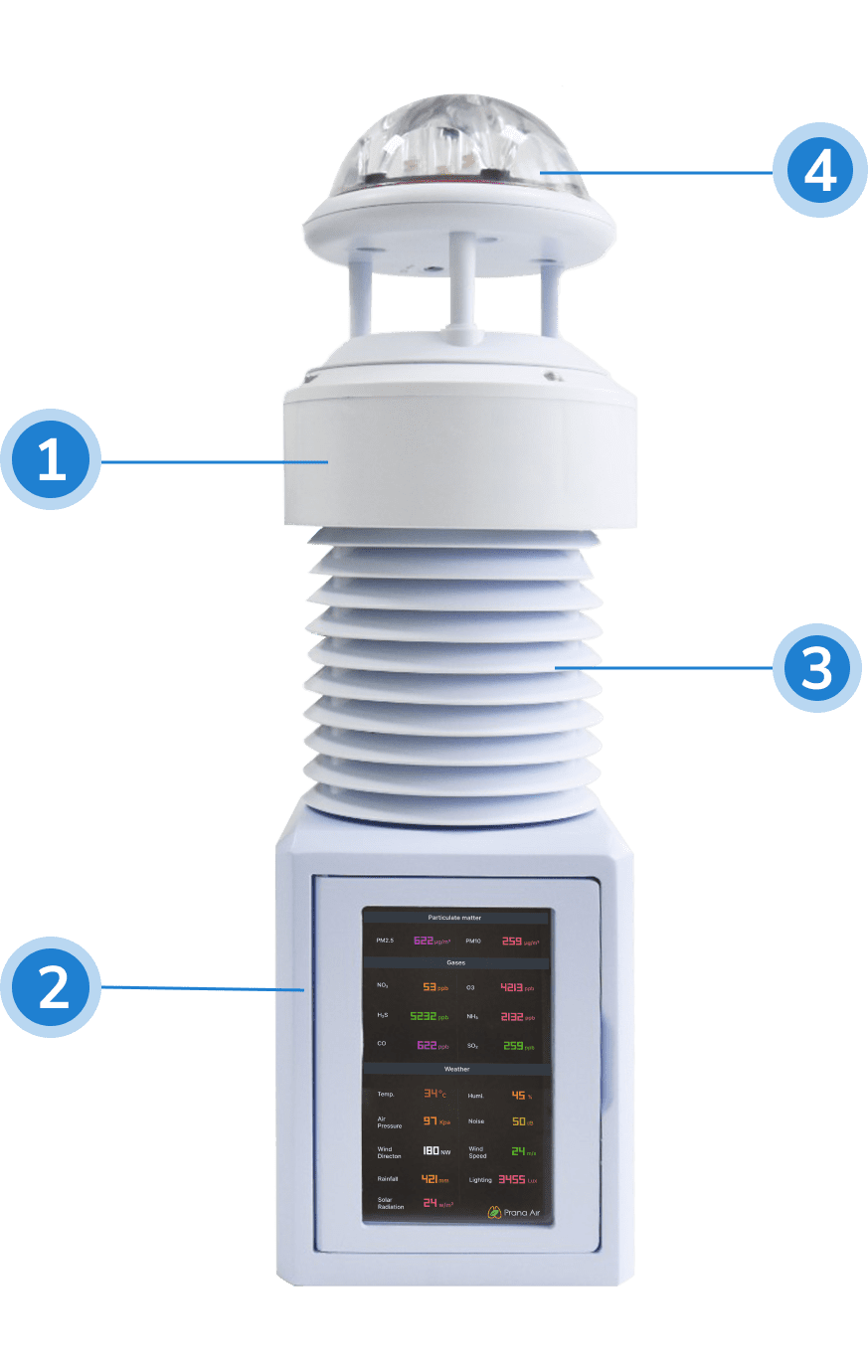

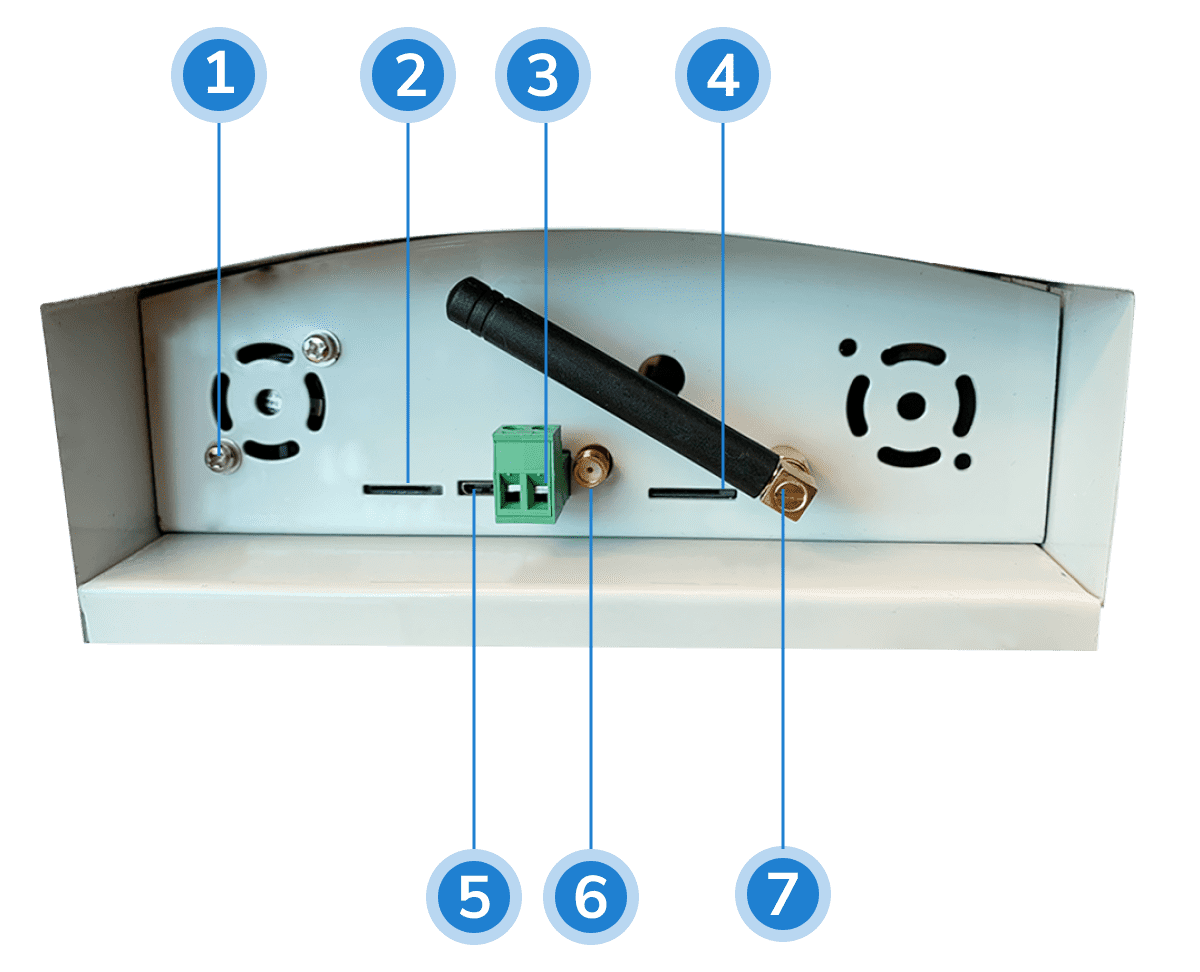

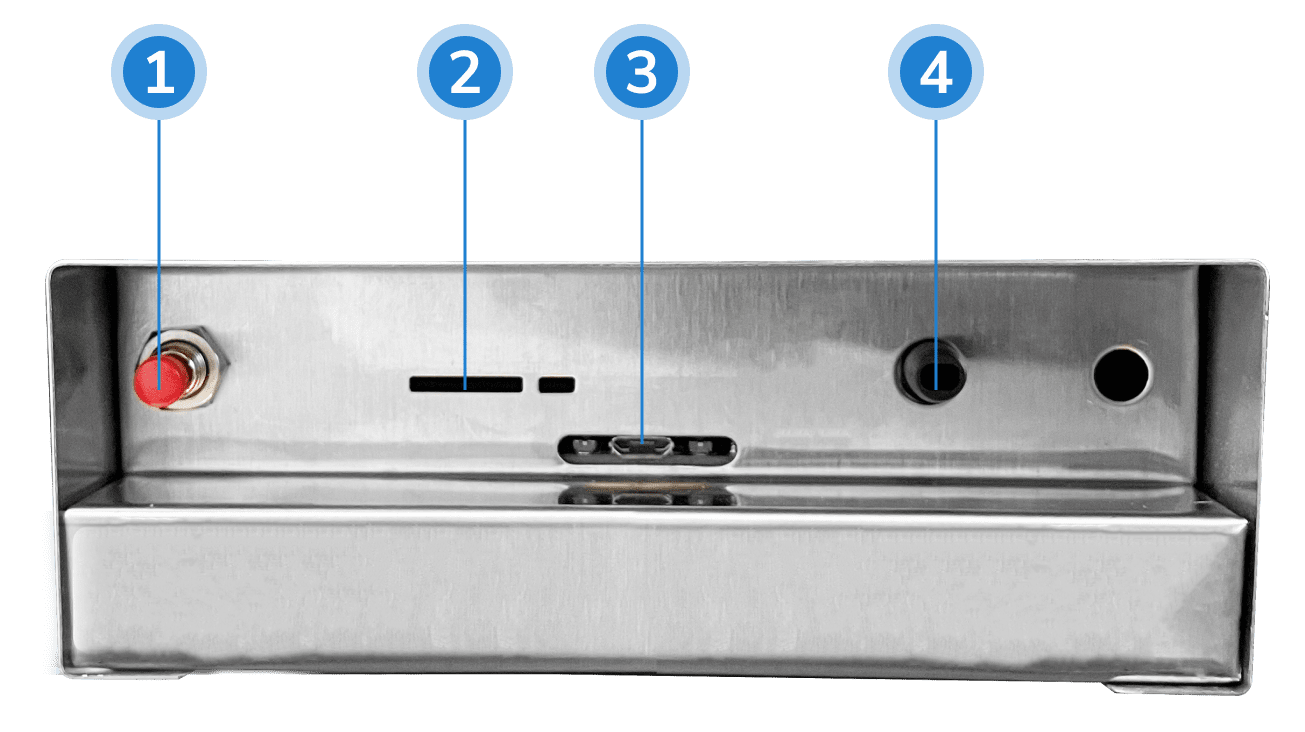

Parts & Lables

prana air ambient air quality monitor technical features

Manage your Air with
the Dashboard

With Prana Air Outdoor Air Quality Monitor you can access dashboard to view your real time air quality readings and recieve notifications. You can also use the dashboard to manage multiple devices, review and compare readings and export your data to optimize your space.

With Prana Air Ambient Air Quality Monitor, you can access dashboard to view your real time air quality readings and recieve notifications. You can also use the dashboard to manage multiple devices, review and compare readings and export your data to optimize your space.

aqi smart tv app

Download Our TV App

Install our app in your smart TV, and connect your monitors
to display air quality data on your television sets 24*7.

Download Our TV App

Install our app in your smart TV, and connect your monitors
to display air quality data on your television sets 24*7.

AQI Web Dashboard


Web Dashboard Features

real-time and historic data

Real-Time & Historic Data

Access the real-time or historic air pollution data of your monitor in minutes, hours, week, months & year.

multiple devices icon

Multiple Devices at One Place

Easy pairing with one/multiple Prana Air – Air Pollution Monitors through WiFi/GSM SIM connectivity.

graphical representation

Graphical Presentation of Data

Get graphical representation of air quality data for your monitor in different ways.

monitor data comparison analysis

Comparative Analysis of Monitors

You can compare the data of your different monitors and make inferences.

qr code and link generate

Generate Link/Scan QR Code

You can generate a link or scan QR code to share the live monitoring data with people and also compare with AQI outdoor monitors.

monitor data download

Export Data of Your Need

Download your monitor’s data anytime offline in .csv/xls for your analysis.

Continuous Ambient Air Quality & Weather Monitoring

prana air ambient air monitor with weahter station

Converge air quality data from multiple monitors at one space for comprehensive air quality, weather monitoring, and mapping of pollution sources.

Plug-in an additional weather station module for wholesome assessment of ambient air.

Sensor Specifications

Temperature
Sensor Type: Digital Sensor Range: 0-60 ̊C (32 to 140 ̊F) Accuracy: ±0.5 ̊C (±1.0 ̊F) Resolution: 0.1 ̊C (0.1 ̊F)
Carbon Dioxide
Sensor Type: NDIR Range: 1-5000 PPM Accuracy: ±3.0% Resolution: 1 PPM
Relative Humidity
Sensor Type: Digital Sensor Range: 5% to 95% RH Accuracy: ±3.0% RH Resolution: 1% RH
TVOC’s
Sensor Type: MOS Range: 0.01-20 PPM Accuracy: ±10% Resolution: 0.01 PPM
Particulate Matter
Sensor Type: 90˚ Light Scattering Range: 1 - 2000 µg/m3 Accuracy: 1 -150 µg/ is ± 10%
150 µg/m3 onwards is ±15%
Resolution: 1µg/m3
Formaldehyde (HCHO)
Sensor Type: Electrochemical Range: 0.01 - 2 PPM Accuracy: ±10% Resolution: 0.01 PPM
ambient air quality monitoring device
NO2 (Nitrogen Dioxide)
Sensor Type: Electrochemical Range: 0.01 PPM - 5 PPM Accuracy: ±3.0% Resolution: 10 PPB
O3 (Ozone)
Sensor Type: Electrochemical Range: 0.02 - 5 PPM Accuracy: ±3.0% Resolution: 10 PPB
Carbon Monoxide (CO)
Sensor Type: Electrochemical Range: 0.1 - 1000 PPM Accuracy: ±3.0%, ±50 PPM Resolution: 0.1 PPM
H2S (Hydrogen Sulphide)
Sensor Type: Electrochemical Range: 1 -10 PPM Accuracy: ±3.0% Resolution: 10 PPB
SO2 (Sulfur Dioxide)
Sensor Type: Electrochemical Range: 0.01 - 50 PPM Accuracy: ±3.0% Resolution: 10 PPB
.
Ethanol
Sensor Type: Electrochemical Range: 0.3 - 800 PPM Accuracy: ±3.0% Resolution: 0.01 PPM

Comparison Graph

prana air monitor vs bam data comparison chart

Use Cases

Product Applications

Smart City

Air quality monitoring systems are being installed in smart cities to monitor the ambient air quality level like PM2.5, PM10, CO, NO2, SO2, etc.

Airports

An ambient air quality monitoring device can be deployed near the runways and the premises of airports to find out the contributing air pollutants .

Metro Station

Nowadays, air quality monitors are installed in the platforms of metro stations as they are one of the most crowded places where everyday people go.

Bus Station

As bus stations are also the most conjested areas, air pollution monitoring devices are placed to measure the polluted air

air quality monitoring in college
Unversity & Schools

Air Quality Monitoring System can be installed in university and school premises to continuously monitor the quality of air people are breathing.

Highways

Highways can be installed with Air Quality Monitoring System to keep a continuous of track air pollution caused by vehicular emissions on highways. This will also help to determine the impact of highway air pollution on nearby villages.

Waste management Plants

nstallation of Air Quality Monitoring nearby waste management plant must be a compulsion. The waste management plants releases harmful pollutants in air and monitoring system will help in keeping the continuous track of AQI.

Tunnels

Air Quality Monitoring is necessary in tunnels as it’s a closed route of vehicles and the pollutants from emissions are not able to wash out completely.

Frequently Asked Questions

About Prana Air Ambient Air Quality Monitor

CAAQMS is Continuous Ambient Air Quality Monitoring System which monitors outdoor air quality parameters. The parameters are Particulate Matter 10 and 2.5, SO2. NO2, O3, H2S and CO.

CAAQMS is necessary as it monitors pollutants using different analyzers based on different working principle. This helps in reducing manual error chances. CAAQMS can generate data with high accuracy in few minutes and the data is disseminated to general public through its display screen.

Ambient Air Quality Monitoring System is needed at places where air polluted majorly through vehicular and industrial emissions such as at airports, bus stations, railway stations, mining industries, universities, schools etc.

This monitor is user friendly, cost effective and easily portable. The monitor is light weighted compactly designed with installation of 5000 mAh battery.

Prana Air ambient air quality monitor is applicable only in outdoor as the name itself is ambient.

Prana Air ambient air quality monitoring system has 3 product variants like. Ambient Lite, Smart & Pro.

Any user can access the data from the monitor through various ways like WiFi, GSM SIM, RS485 in AQI mobile applications of android & iOS, smart TV & web dashboard.

Yes, not only mobile applications, smart TV application is also available.

We have different data plans in terms of license on the basis of monthly, quaterly or annually at a fixed cost.

In free plan, you can only access the real-time data and all the other features of dashboard will be restricted.

Yes, we give 1 year warrany for the ambient air quality monitor only on manufacturing deffects.

Yes, Device Calibration: Usually, the sensors last 3 years without calibration. In case, if you experience a huge drift on the device calculation, the sensor has to be calibrated or changed. In this case, the monitor has to be returned to our premise and the replacement of sensors will be done free of cost if it is under warranty. For out of warranty, the replacement will be done on additional cost.

You can directly contact to our support team.

Call at 07391873918 or email – info@purelogic.in
