Indoor PM2.5 Dust Sensor
For Air Quality Monitoring

Request Quote

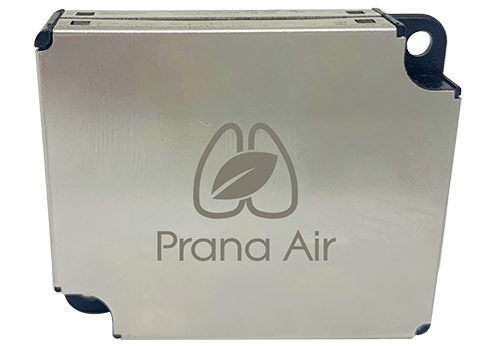

prana air indoor pm sensor

PM2.5 Dust Sensor :

Prana Air Particulate Matter Indoor PM sensor (PAS-IN-01) is created with high precision and accuracy. The sensor is capable to give real-time data for both PM2.5 and PM10. The sensor is applicable to commercial/industrial and consumer-grade. The sensor comes with a built-in laser and photoelectric receiving module. The sensor is based on 90o light scattering technique. The packaging is ultra-thin, compact, and cost-effective allowing easy inclusion in all kinds of monitoring and regulating solutions for particulate. Effective concentration of PM 2.5 and PM10 is 0-1500 ug/m3 and 0-2000 ug/m3 respectively. Particulate matter is a combination of liquid droplets mixed with dust, dirt, and soot that are not visible to the naked eye and can be as small as a hair tip. These tiny dust particles have the potential to cause health issues by entering the lungs and bloodstream.

Features

compact icon

Compact

The sensor’s ultra-slim package enables it to get lodged in any kind of device or instrument. It is suitable for hand-held devices as well as real-time outdoor monitoring.

durable icon

Durable

The highly accurate indoor pm sensor comes with a long-lasting operational life of up to 10 years. Install it in your instrument once and forget all your sensor-related worries.

highly responsive icon

Highly Responsive

The average response time of this indoor PM2.5 sensor is 15 seconds making it robust and fast.

reliable icon

Reliable

Laser-based scattering principle and advanced algorithms enable precise and reliable measurements.

automatic feedback icon

Automatic Feedback

Fan with an in-built closed-loop control to stabilize airflow and optimization of the operational life of the sensor.

water resistant icon

Water-Resistant

Moisture-proof design reduces the chances of optical error measurements due to humidity.

accurate icon

Accurate

High-resolution particle sizing to broaden the range of applicability pertaining to specific particle size.

energy efficient icon

Energy Efficient

It requires low power input to function. Therefore, the overall energy consumption of the device decreases due to this energy-saving sensor.

Technology We Use In PM2.5 Dust Sensor

Prana Air indoor pm2.5 sensor works on principle of the 90o light scattering technique. The concentration of PM2.5 and PM10 in an indoor environment is quantified by the PAS-IN-01 sensor. Air enters the sensor and particles interact with the LASER beam striking the mirror aperture. Particles scatter back toward the photodiode. Photodiode captures the scattered light leading to signal generation which is converted into particle count and mass.

prana air indoor particulate sensor
prana air indoor pm sensor specification

Technical Indicators of PM2.5 Dust Sensor

Parameter Value
Dimension 4.5 x 4.5 x 2 cm
Rated voltage 5V
Rated current 70mA
Communication Port Level 3.3 V
Working Temperature -20~70 C°
Storage Temperature -20~85 C°
Working Humidity 0~99C%RH (No condensation)
Particle Size Resolution 0.3 um
Effective range of PM2.5 mass concentration 0-1500 ug/m3
Effective range of PM10 mass concentration 0-2000 ug/m3
Mass concentration data resolution 1 ug/m3
Consistency of PM2.5 mass concentration +10% or +10 ug, whichever is greater
Consistency of PM10 mass concentration +15% or +15 ug, whichever is greater
Mean time between failures >30,000 hours

Applications

indoor pm sensor for Air purifiers

Air Purifier

indoor pm sensor for Indoor monitor

Indoor Air Quality
Monitors

Indoor pm sensor for HVAC Ventilation Systems

HVAC Ventilation
System

Indoor pm sensor for automobile

Automobile & Aeronautical
Industries

indoor pm sensor for Research Laboratories

Research Laboratories

indoor pm sensor for Quarantine facilities

Quarantine Facilities
