& Intelligent

IR Thermal Camera

Artificially intelligent body temperature alert and face mask
scanning system

Quick scan – 99.9% Accuracy – Smart Reporting System

Cross-industry usage and zero human error

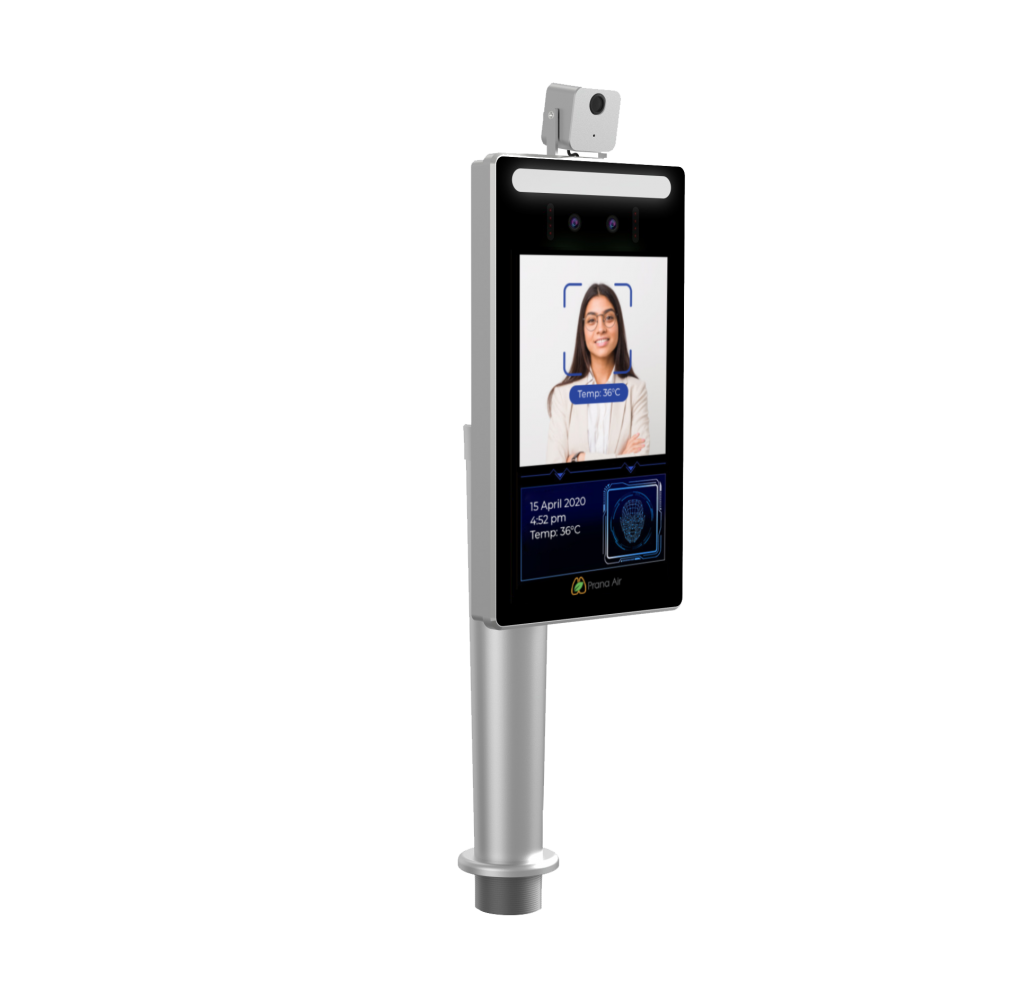

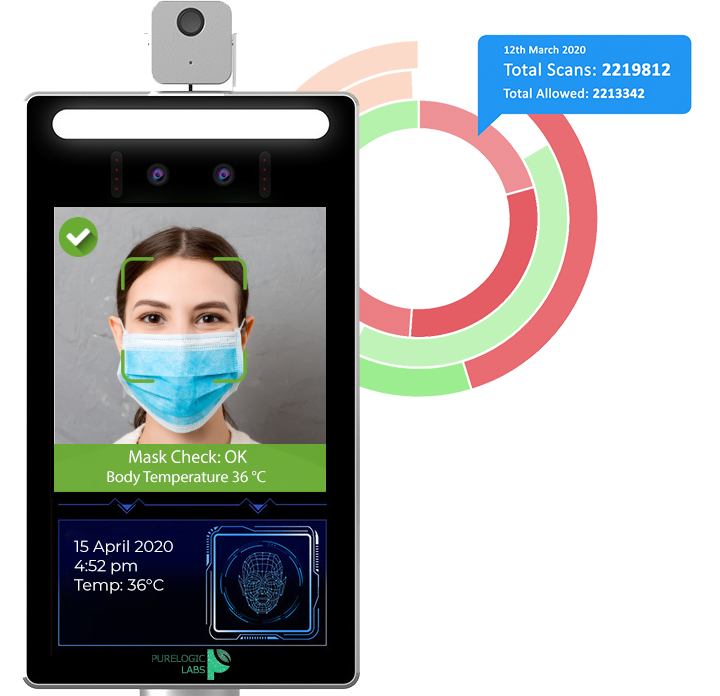

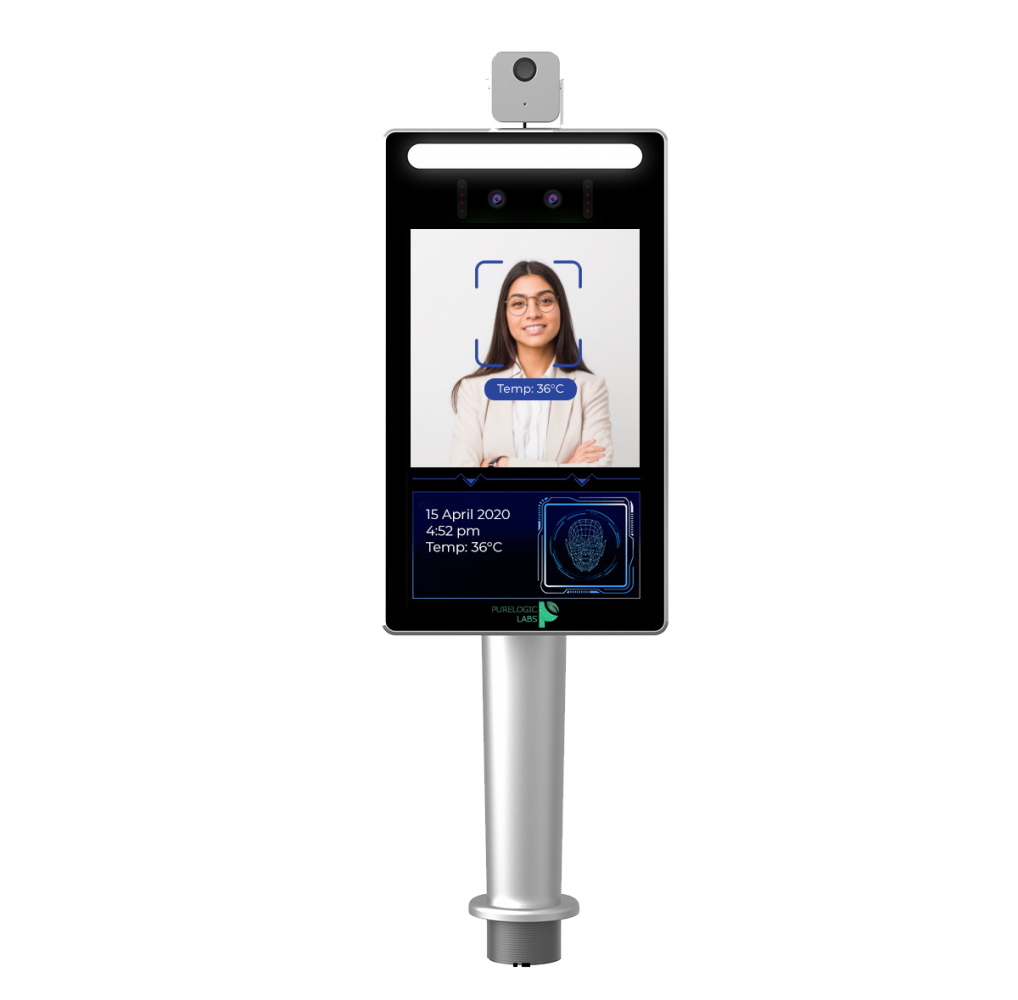

prana air smart ai thermal camera

99.9% Accuracy

High accuracy scan results with customisable alerts.

Quick Scan

Get accurate scan results from 3 meters in under 0.5 Secs.

Zero Human Error

Quad-core Cortex-A17 1.8GHz chipset makes no mistakes.

State Of The Art Technology

Features of Prana Air Smart AI Thermal Camera

Accurate

Temperature reading

In-built-camera-light icon

In-built

Camera light

HD-Camera icon

HD

Camera

HD

Display

Android

8.1 OS

High quality

Aluminium casing

No more long queue for temprature scanning.

Scan on the go from a distance of upto 3 metres under 0.5 seconds with a accuracy rate of 99.9%.

SMART ALERT SYSTEM

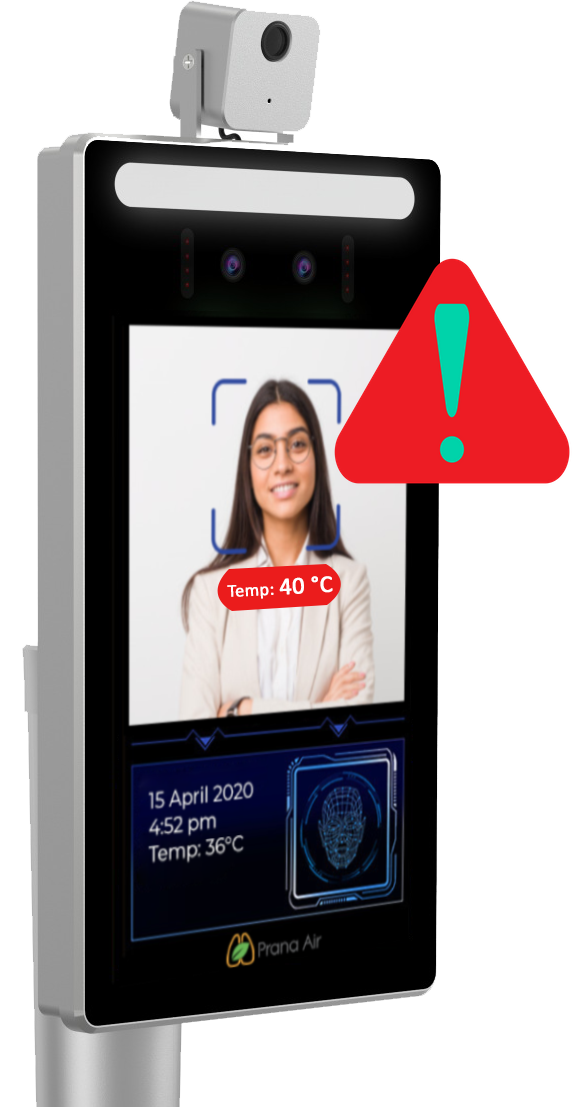

Temprature and Mask Alert

  • Create customised alerts for body temperature and mask, with greater accuracy and without involving a manual labour.
  • The machine works for you 24×7 with the same amazing accuracy so you can do other important work.

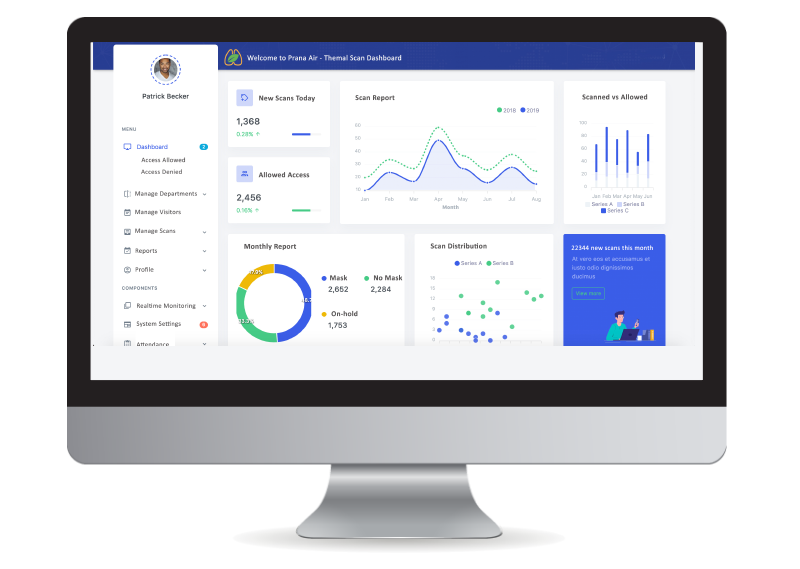

  • Generate reports of scan on daily, weekly and monthly basis to analyse the scanning results.
prana air ai thermal camera scanning alert

SEE IT WORK

Cross Industry Applications

Thermal camera Face Recognition Machine at Metro

Body Temperature Alert

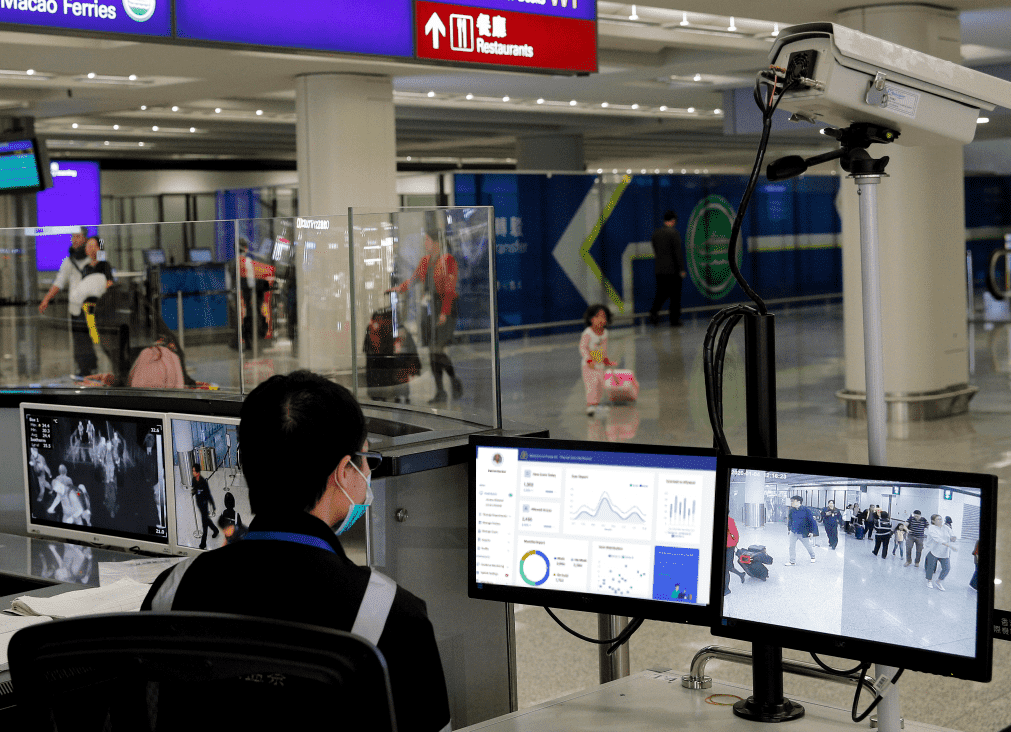

thermal camera Face Recognition Machine at Airport

Face Mask Scanning

Airport Check-Ins

Technical Specifications

  • Hardware
  • Software
                                                                               Hardware Specifications
Display
7-inch TFT screen, resolution 1280*800
CPU
Rockchip RK3288/3399 Quad-core Cortex-A17 1.8GHz
Memory and Storage
DDR3 2GB EMMC 8GB/ DDR3 4GB EMMC 16GB
Camera
Front 2 million HD camera, maximum resolution: 1920*1080
Power supply
DC 12V 20W
Communications and Interfaces
Supports RJ45 Gigabit Networking, wi-fi and Bluetooth, USB 2.0
Access interface
1 set of relay dry junction signal
Shell Material
Pure aluminum alloy, silver
Water proof grade
IP66

Software Specifications

Face detection rateMore than 99.9% (distance 0.5 - 3 meters)
Face recognition rateGreater than 99.7% (distance 0.3-2 m, front face < 20 degrees, stable light)
Recognition speedTurn on living body detection <=1s turn off living body detection 0.5s
Face database capacityCloud Online, 80W Face Count, Offline Local 10000 Face Count
Operating systemAndroid 8.1
